夹紧拉钉仅在加工过程中旋紧在夹头、虎钳或托板上。由于它不影响基准位置,为节省储存空间,平常可拆下,使用时再安装。

Chucking spigots are screwed into the holder, vise or into the pallet for the machining cycle only. Since it has no influence on the reference position, it is removed for the purpose of space saving storage and only screwed in again when the holder, vise or pallet is used next time.



技术参数 Technical data

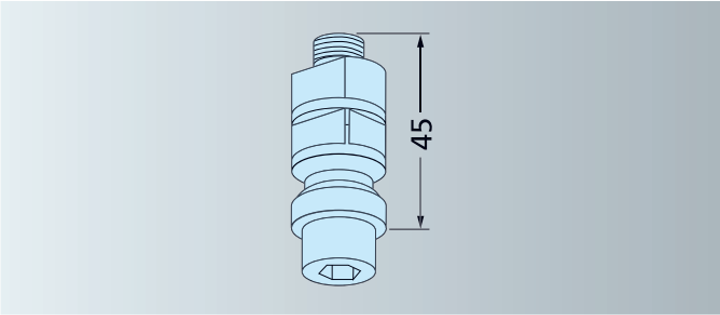

ITS夹紧拉钉 ITS Chucking spigot

材料 Material

钢,硬质 Steel, hardened

螺钉 Bolt

M10

规格 Versions



TE100-1005 手动拉钉

Chucking spigotM

螺钉有中心冲洗孔,用于电火花加工和轻型切削加工

Bolt with flushing hole. For EDMing and easy machining.

TE100-1006  自动拉钉

Chucking spigotA

螺钉有中心冲洗孔,用于电火花加工和轻型切削加工

For electrode holder to be changed automatically. For EDMing and machining with light cutting force.



探索更多解决方案

编号:TE100-1005

品名:手动拉钉

Chucking spigotM

编号:TE100-1006

品名:自动拉钉

Chucking spigotA
